Zhejiang Jiaerling Pneumatic Machinery Co., LTD

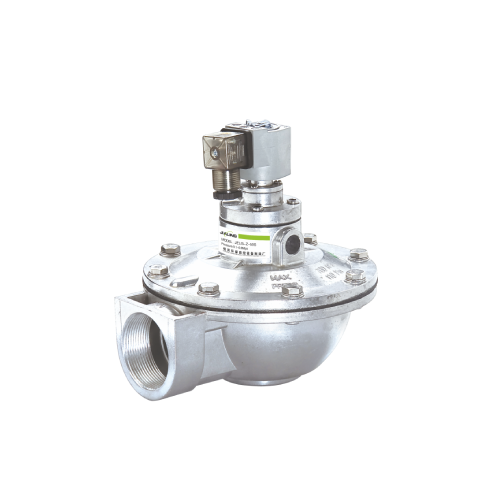

MCF-Z-40S/50S/62S/76S/35P
MCF-Z-40S/50S/62S/76S/35P
Model
40S
50S
62S
76S
35P
Voltage
AC110V
AC220V
DC24V
Product variants
40S / AC110V - ¥0.00
40S / AC220V - ¥0.00
40S / DC24V - ¥0.00
50S / AC110V - ¥0.00
50S / AC220V - ¥0.00
50S / DC24V - ¥0.00
62S / AC110V - ¥0.00
62S / AC220V - ¥0.00
62S / DC24V - ¥0.00
76S / AC110V - ¥0.00
76S / AC220V - ¥0.00
76S / DC24V - ¥0.00
35P / AC110V - ¥0.00
35P / AC220V - ¥0.00
35P / DC24V - ¥0.00
Quantity
(
0
in cart)
Decrease quantity for MCF-Z-40S/50S/62S/76S/35P
Increase quantity for MCF-Z-40S/50S/62S/76S/35P
Regular price
¥0.00 CNY
Regular price
Sale price
¥0.00 CNY
Unit price
/
per
Sale
Sold out
Add to cart
This item is a recurring or deferred purchase. By continuing, I agree to the
cancellation policy
and authorize you to charge my payment method at the prices, frequency and dates listed on this page until my order is fulfilled or I cancel, if permitted.
Couldn't load pickup availability
Refresh
View full details
Model No
A
B
C
JELG-Z-40S
175
138
126
JELG-Z-50S
202
205
185
JELG-Z-62S
222
210
185
JELG-Z-76S
245
230
200
JELG-Z-35P
142
121
112
Model No
G-Z-40S
G-Z-50S
G-Z-62S
G-Z-76S
G-Z-35P
Operating Pressure
0.3~0.6Mpa
Temperature
-5~55℃
Relative Humidity
< 85%
Fluid
Clean Air
Voltage
AC110V/AC220V/DC24V ±10%
Current
0.46A/0.23A/0.8A ±10%
Diaphragm Life
1 Million +
Diameter(mm)
40
50
62
76
35
Port Size(inch)
G1 1/2"
G2"
G2 1/2"
G3"
G1 1/2"
Flow Rate(m³/h)
44/51
91/106
117/136
144/167
36/42
Filter Area(㎡）
20~22
34~36
40~42
42~45
16~18
